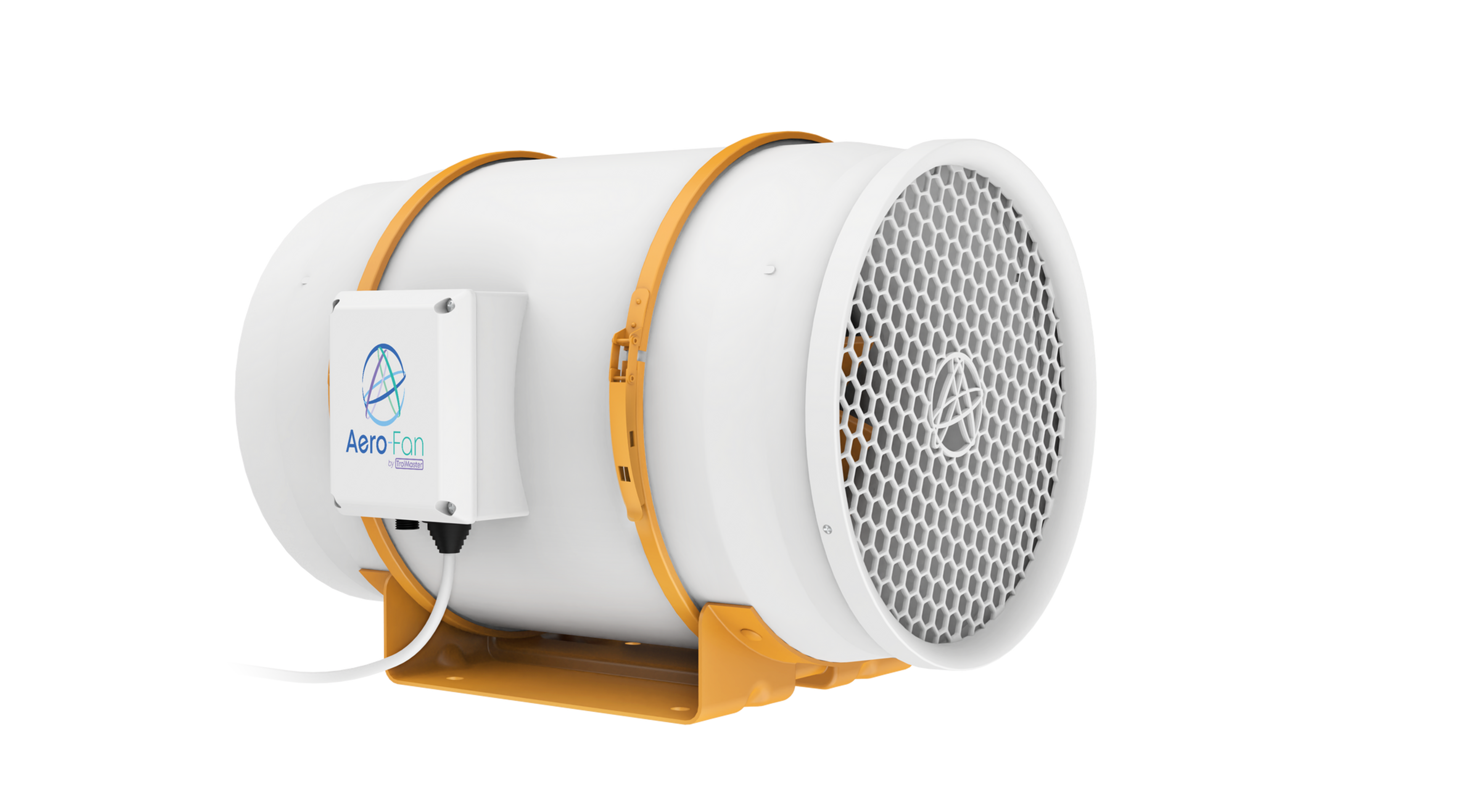

10 Inch Inline Duct Ventilation Fan（V-10）
The 10-inch Inline Duct Ventilation Fan is a compact and efficient device designed to improve air circulation and ventilation in indoor spaces. With its powerful motor, it moves a significant volume of air, removing stale air, and humidity. Its versatile design allows easy installation in various duct systems, ensuring a fresh and comfortable environment. Ideal for the grow room settings, this fan is a reliable solution for maintaining optimal indoor air quality.
*Using without remote FRC-1 requires an ECS-9 for direct connection to the controller.
Specification
Operating Voltage: 100-277VAC, 50/60Hz
Rated Current: 2.7A Max
Rated input power: 268W Max.
No. of Blades: 10
Max. air flow: 1650m3/h
Max. static air pressure: 956Pa
Rotating Direction: CCW
Operating temperature: -20°C ~ 60°C
Mean Time To Failure (MTBF): 50000H 25°C)
IP Rating: IP44
Dimensions: 15.31 x 11.26 x 9.70 inch
Net Weight: 6.5KG/14.33lbTech Sheet
